Displaying items by tag: Mini Boiler

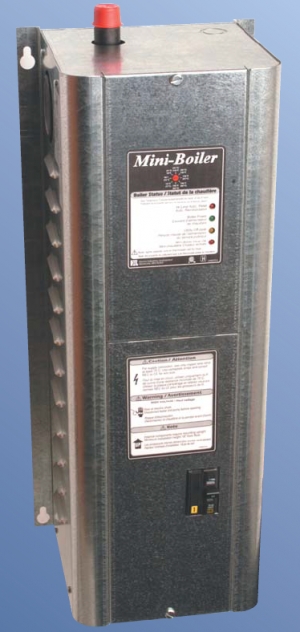

Mini-Boiler WarmFlo

Features include:

•     Compact, 1.1 gal. vessel
•     240V, 4.5 - 9 kW, Temperature Sensing
•     Easy installation
•     WarmFlo sensing technology
•     Built-in pump control relay
•     Pressure temperature gauge
•     Built-in load management
•     Wall-mounted design
•     Two level hi-limit protection-160° pipe protection
•     Quiet operation
•     20-year element/vessel warranty
•     100% efficient

Typical radiant applications include:

•     Multi-zone applications
•     Multi-temperature applications
•     Hot water baseboard/radiator systems
•     In-floor heat - staple-up application
•     Forced air hot water coil
•     Apartments
•     Condo’s
•     Garages
•     Shops
•     Animal Barns
•     Whole house by using one boiler per level
•     Even Bus Shelters....

Mini-Boiler Radiant

• Compact, 1.1 gal. vessel
•     120V, 1 - 5 kW
•     240V, 4.5 - 9 kW

Features include:

•     Built-in temperature pressure gauge
•     Built-in temperature sensor
•     Square D circuit breaker (built-in disconnect circuit breaker)
•     Temperature dial on front cover
•     Indicator lights
•     Easy access control board
•     Compact design, 10-½”W x 8-⅝”D x 25”H
•     100% efficient

Standard equipment:

•     Control wiring terminals
•     DC power relays
•     Hi-limits: 1st - automatic reset, 2nd - manual reset
•     Circulator switching relay - 10-amp maximum
•     Thermostat or end switch connection (R and W)
•     Load management control provisions
•     Heavy duty sheet metal enclosure
•     1 gal. steel vessel, ASME “H” Stamp (20-year warranty)
•     Safety relief valve (30 PSI)
•     Low watt density heating elements (20-year warranty)
•     2-year parts warranty
•     Temperature range 90° F to 160° F
•     ASME/CSA listings
•     Made in the USA

    Typical radiant applications include:

•     Apartments
•     Condo’s
•     Garages
•     Shops
•     Animal Barns
•     Whole house by using one boiler per level
•     Even Bus Shelters....
