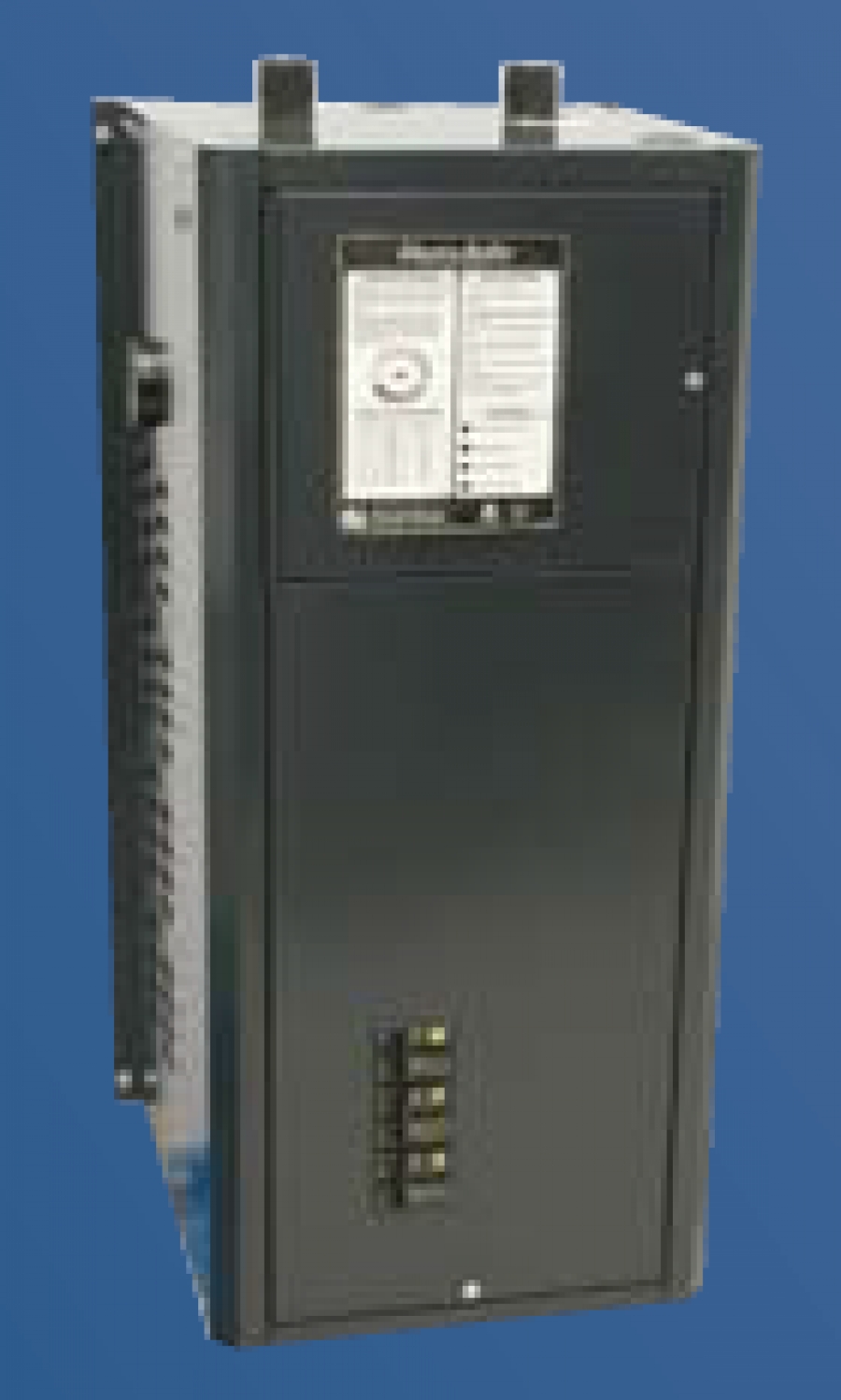

Electro-Boiler Industrial Series

•     Large 40 gal. vessel
•     208V/240V/480V/600V, three phase
•     60 - 300 kW
•     Full electronic temperature adjustment
•     Outdoor reset feature included
•     ASME and CSA/UL listed
•     Vessel boasts a large 40-gallon capacity
•     Outdoor reset
•     Disconnect circuit breakers for each heating element
•     Pressure vessel built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code
•     Compact, can easily fit through service doors
•     No minimum return water temperature required
•     5-year vessel warranty
•     0-10VDC terminal enabling control of boiler via building automation system, etc.
•     Software and interface cable for setup, monitoring, and troubleshooting
•     Circuit breakers, each stage
•     Manual reset hi-limit - 220° F
•     Auto reset limit control - 210° F
•     Low water cut-off with manual reset
•     ASME pressure relief valve, 30 psi
•     Pressure/temperature gauge
•     Drain pipe
•     3” NPT inlet and outlet, with inspection opening
•     Incoloy sheathed heating elements
•     Built-in load management controls, vessel top screw-in
•     Staging indicator lights, at contactor
•     Main supply circuit lugs
•     Safety door interlock and lockable door latch
•     Contains all boiler controls and adjustments
•     Bender fault monitor (optional)
•     Manual reset low water cut-off
•     Hi-limit reset button
•     Temp Sensing & Alarm board
•     T775R controller (optional)
•     Alarm and alarm LED’s
•     Sequencer up to 15 stages
•     Progressive staging delay time
